光學式三維掃描系統-Optical 3D Fullbody Scanner

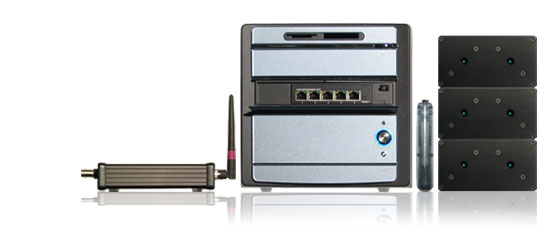

The IMPULSE motion capture system has some of the most sophisticated and technologically advanced hardware. All of this technology was designed specifically to make motion capture easier. PhaseSpace has taken all the hard work away from the user and packed it into the hardware. The entire system consists of only a few elements, each designed to be powerful and portable.

IMPULSE CAMERAS

Each camera acheives an Optical Resolution of 3600 x 3600 (12 Megapixel) using two linear detectors with 16-bit dynamic range. Onboard processors produce an impressive Subpixel Resolution of 30,000 x 30,000 at 480 Hz.
DIMENSIONS: 4.25" x 3.62" x 2.17"
WEIGHT: 0.5lbs

LED BASE STATION

This 2.4 Ghz Transceiver synchronizes the LED controllers with the server. The LED Base Station also outputs outside time sources such as GEN-LOCK and IRIG-B.
DIMENSIONS: 5" x 3" x 1.2"
WEIGHT: 0.3lbs

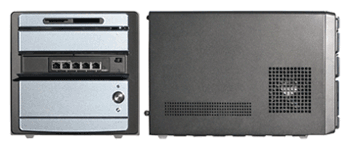

SERVER COMPUTER

The entire IMPULSE Motion Capture System runs efficiently on a single server computer. Utilizing an AMD 64 processor, the server machine collects and processes data from up to 24 cameras. The server outputs 3D position data at 480 Frames per Second with below 10ms latency allowing multiple clients to connect through a network or even through the internet. The Server may be controlled using client software, and thus operated "headless" (requiring no monitor/keyboard/mouse).
DIMENSIONS: 12.75" x 8.75" x 8.5"
WEIGHT: 12.5lbs

IMPULSE ACTIVE LED

The LED Controller, an RF transceiver, utilizes an onboard microprocessor to control up to 72 LEDs. Battery life is 2 to 4 hours of continual use, up to 8 hours of typical use. The IMPULSE system can use multiple LED Controllers simultaneously.
DIMENSIONS: 0.8" x 0.55" x 0.125"
WEIGHT: 0.01lbs

LED CONTROLLERS

The IMPULSE system uses standard RJ45 ethernet cables to connect the cameras and basestation to the server. This provides the user with the ability to customize their capture-space to fit virtually any situation. Each single-processor server can connect and power up to 24 IMPULSE cameras. The Base Station provides an RF signal to the LED controller which may be adjusted to circumvent any radio interference. Each LED controller can drive a maximum of 72 active LEDs.
DIMENSIONS: 5" x 2.75" x 0.85"
WEIGH: 0.2lbs

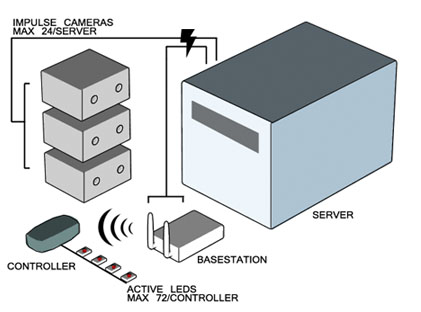

IMPULSE CONFIGURATION

The IMPULSE system uses standard RJ45 ethernet cables to connect between the cameras, basestation, and server. This allows for maximum user customization. Each server, using a single processor, can connect and power up to 24 IMPULSE cameras. The base station provides an RF signal to the LED controller. The RF channels can be adjusted to circumvent any radio interference. Each LED controller can drive a maximum of 72 active LEDs.
